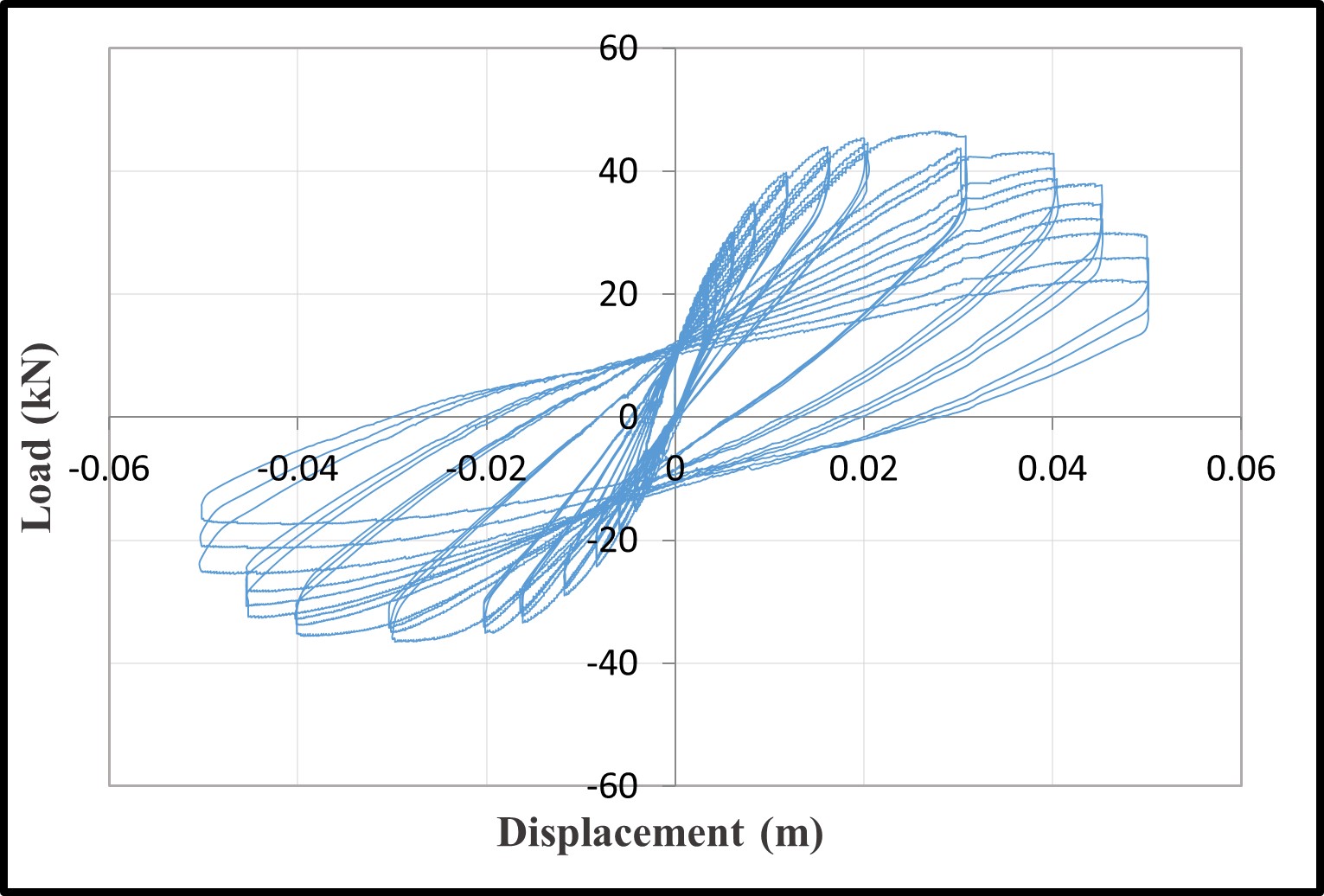

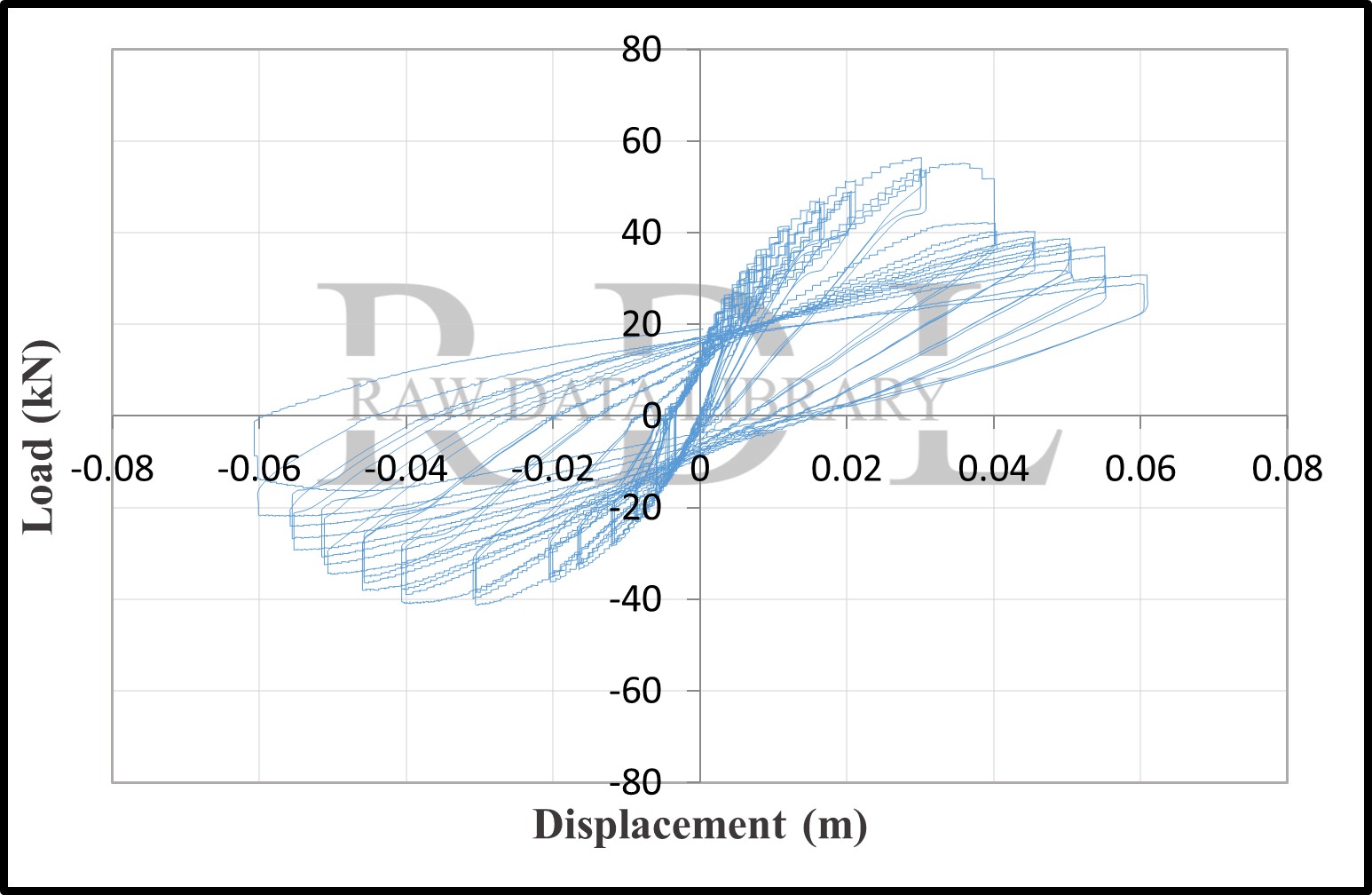

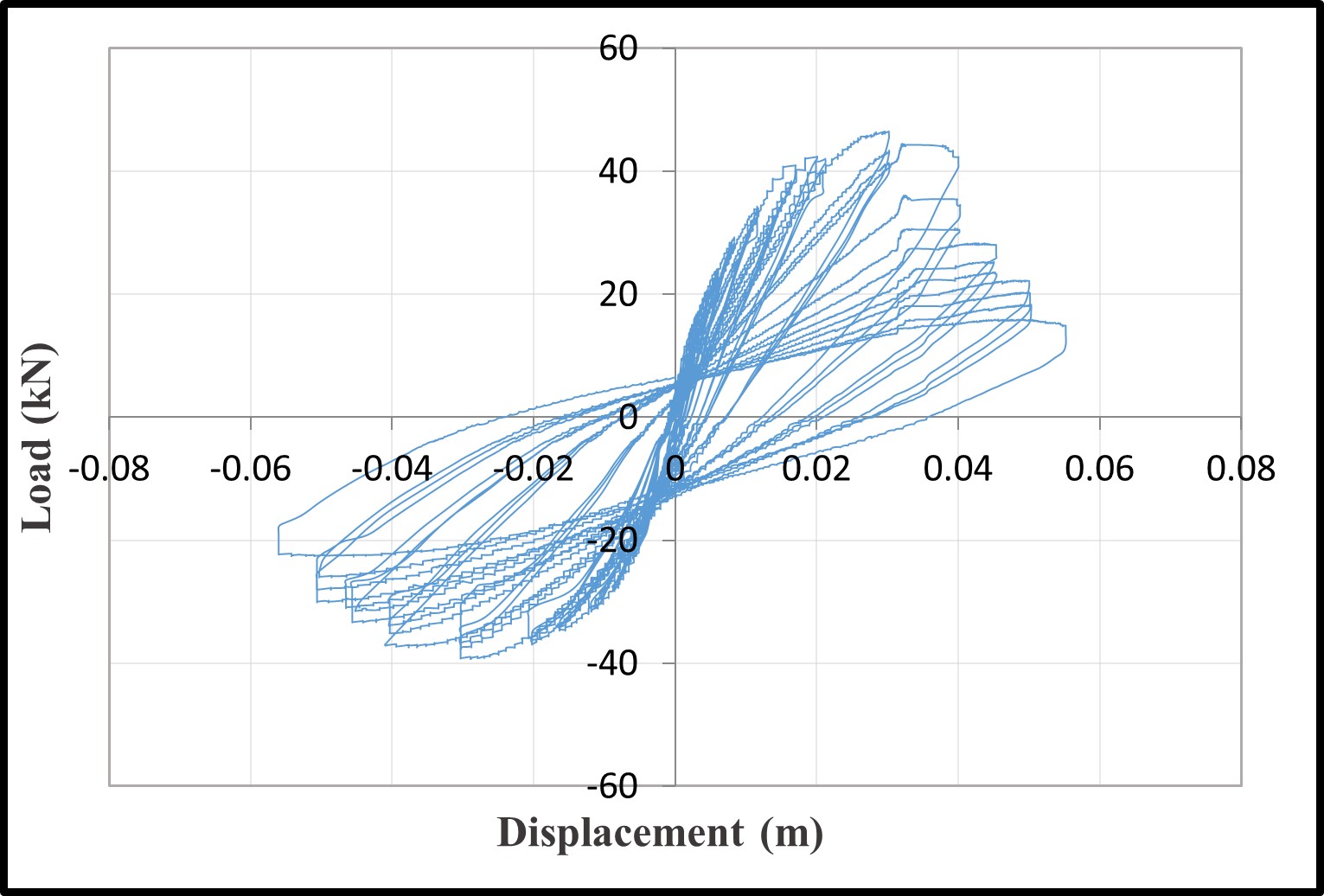

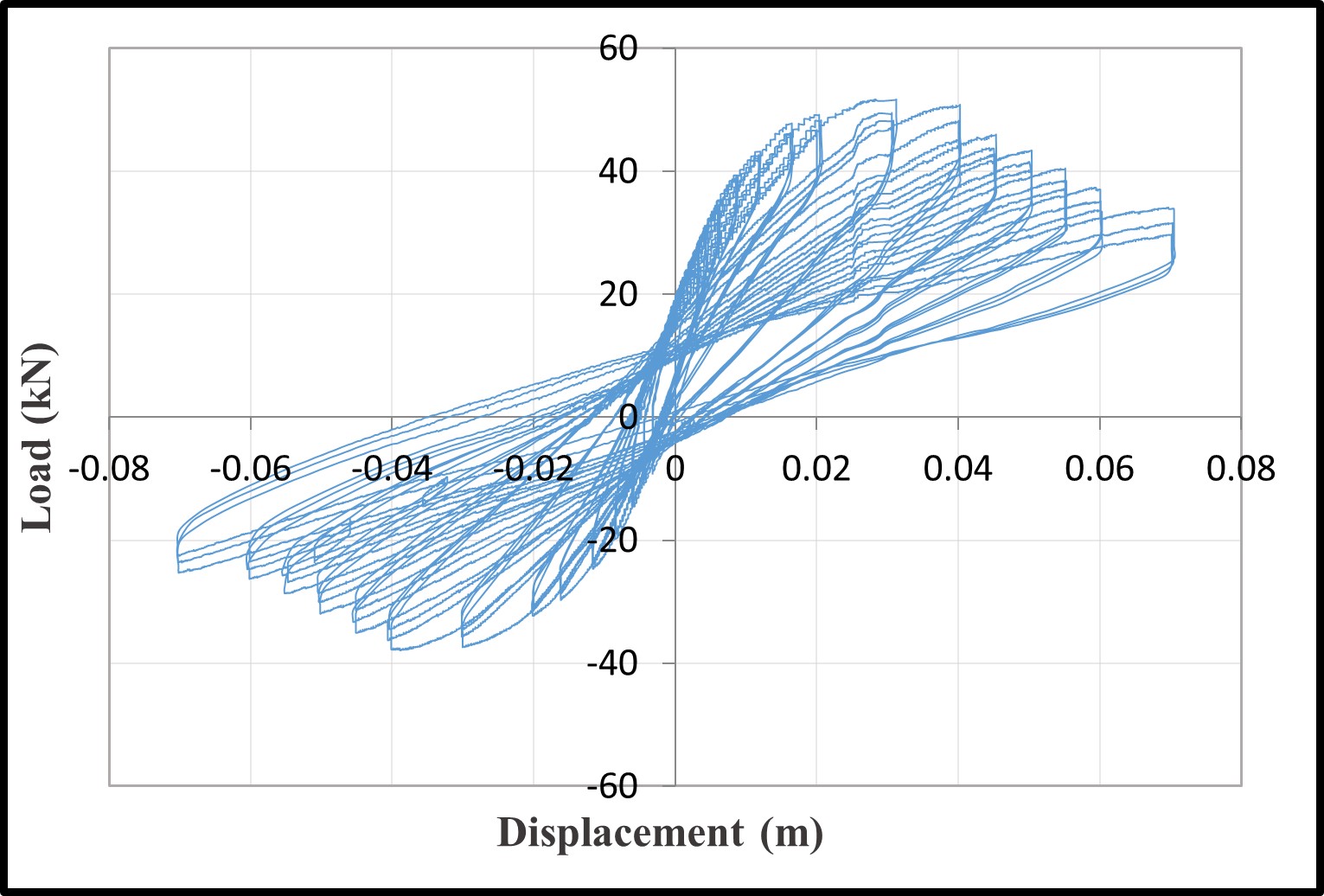

Load-Displacement Curves

In the literature, only one empirical model is available as a nondestructive method for the prediction of seismic performance levels of corroded reinforced concrete (RC) columns as a function of the initial corrosion crack width at lower corrosion levels. Because of the ruptured transverse reinforcement bars at higher corrosion levels, the structural behavior may turn brittle in terms of shear failure. Therefore, in this study, higher corrosion levels for a different concrete strength level from that empirical model were studied. To do this, four RC columns were subjected to accelerated corrosion, and the widths of initial corrosion cracks were measured. The corroded RC columns were then tested under combined constant axial load and cyclic lateral displacement excursions. After the cyclic loading test, the actual corrosion levels at each reinforcement bar were obtained by extracting the reinforcement bars from the concrete. Test results showed that the prediction of seismic performance levels of corroded RC columns based on initial corrosion crack widths were limited owing to the nonlinear increase in the crack width with the increase in the corrosion levels. New empirical models were developed to predict the remaining energy capacities and seismic performance levels of the corroded RC columns.
